IoT sensors

IoT sensors – development app for visualisation of sensor data

Features

☂︎ Thingy:91 temperature, pressure, humidity, air resistance, ambient light, accelerometer, impact, LED control
☂︎ compass with 3D calibration, accelerometer, gravity, gyroscope, battery state of charge
☂︎ JSON format for sensor data
☂︎ connectivity: BLE, TCP, UART
☂︎ bridge TCP to BLE or UART requires g_relay, gncom or compatible server,
and allows multiple clients to share a single sensor
☂︎ compatible with sensor samples from nano RTOS
☂︎ new sensors can be added on demand

Notes

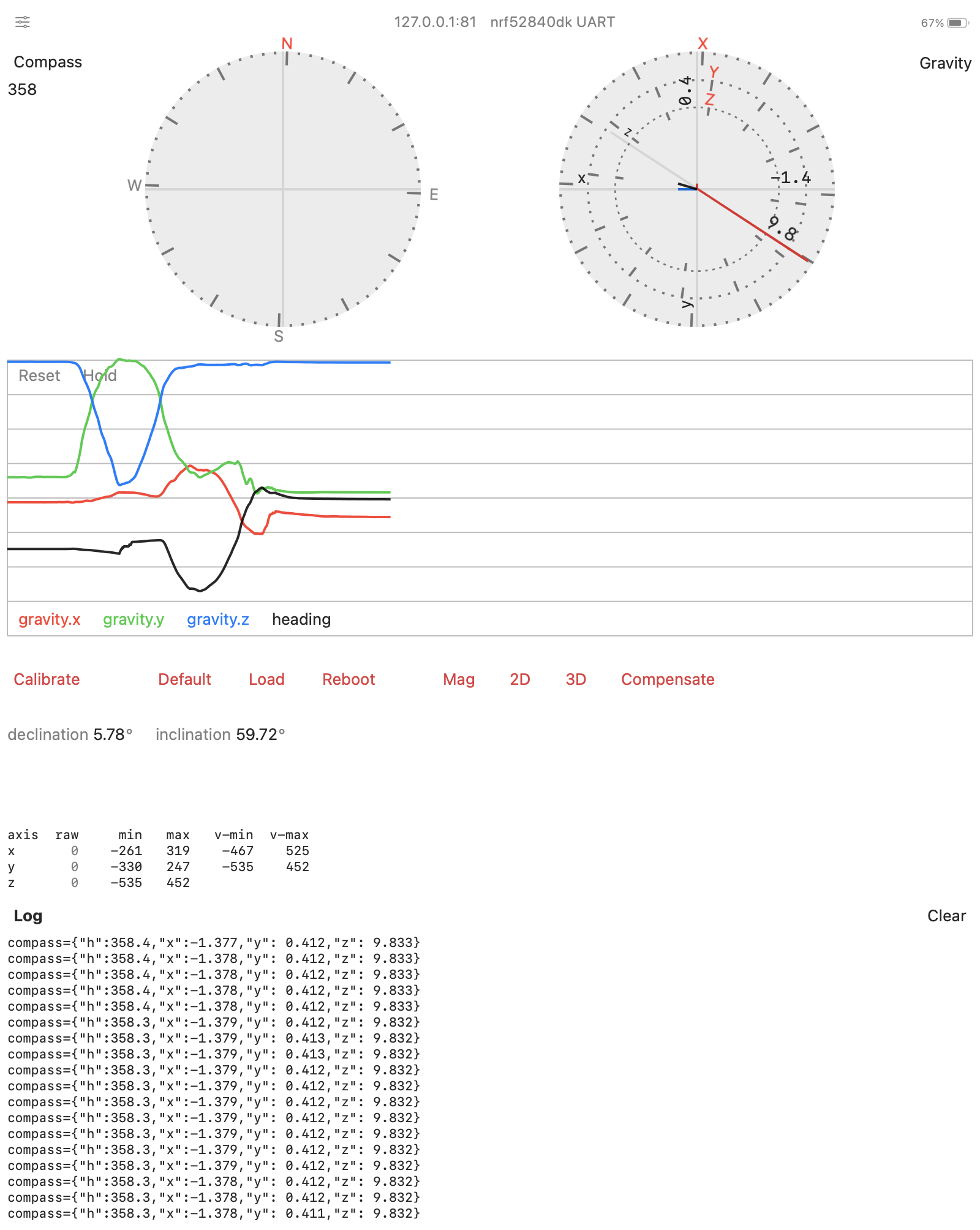

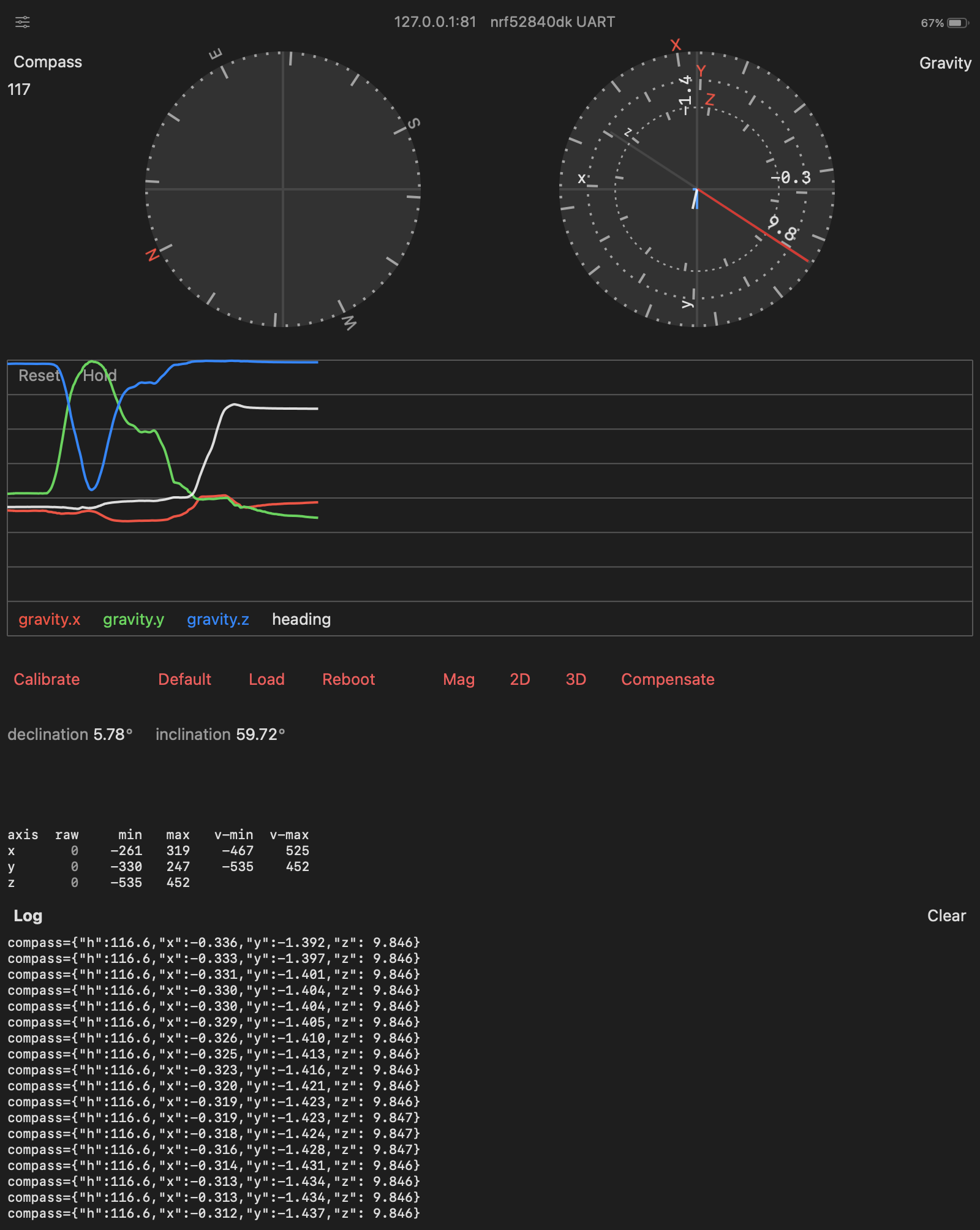

IoT sensors is a development app for visualisation of sensor data
the sensor data is sent as JSON over BLE, TCP or UART,
and can be shared with other clients when bridge mode is enabled.
The sensor type is detected automatically, showing appropriate UI elements.

Download IoT sensors

☂︎ App Store for iOS and macOS
☂︎ video demo

Thingy:91

☂︎ product page
☂︎ sensors firmware

JSON data

Sensor data samples use JSON format and are separated by a new line. Optional values may be ommited.

type={"key":value} // regular format
key: value         // simple format

Thingy:91 sensors

// LED0-5 status (individual)
GPIO0: 0
GPIO5: 1
bool value // LED0-5 status
// GPIO0:R GPIO1:G GPIO2:B RGB
// GPIO3:r GPIO4:g GPIO5:b RGB sense

// LED status (all LEDs)
GPIO: 3f
uint8_t value // LED status in hex 0-3f
// 0x01:R 0x02:G 0x04:B RGB
// 0x08:r 0x10:g 0x20:b RGB sense

// adxl362
adxl362={"x":  3.1,"y": -0.9,"z":-10.8,"t":21.6}
float x, y, z // accelerometer data m/s²
float t       // temperature °C (optional)

// adxl372
adxl372={"x": 101,"y":  68,"z":  25,"s":1007}
float x, y, z // accelerometer data m/s²
uint16_t s    // status flags in hex (optional)

// BH1749 light and colour
bh1749={"r": 69,"g":  1,"b":  0,"i":  4}
uint16_t r, g, b, i // light data RGB + infrared

// b|battery
b={"v":3637,"l":  4,"c":0}
battery={"v":3637,"l":  4,"c":0}
uint16_t v // voltage mV
uint8_t  l // state of charge % (optional)
uint8_t  c // charge status (optional)

// b|battery voltage mV
b: 3637
battery: 3637
uint16_t v // voltage mV

// BME680 pressure and temperature
bme680={"temp": 23.897,"pressure": 98429,"humidity": 33.200,"gas": 810247}
float temp     // °C
float pressure // Pa
float humidity // %
uint32_t gas   // gas resistance:Ω

Generic sensors

// g|gps
g={"h": 170}
gps={"h": 170}
gps={"h": 171,"b":   0,"B":7441}
float h       // heading degree
float b       // bearing degree
float B       // battery voltage mV

// c|compass
c={"h":171,"x":-0.00,"y":-0.00,"z":10.0}
compass={"h":170.9,"x":-0.003,"y":-0.002,"z":10.000}
float h       // heading degree
float x, y, z // gravity data m/s²

// gravity
gravity={"x":-0.00,"y":-0.00,"z":10.0}
float x, y, z // gravity data m/s²

// gyro|gyroscope
gyro={"x":-0.00,"y":-0.00,"z":-0.00}
gyroscope={"x":-0.00,"y":-0.00,"z":-0.00}
float x, y, z // angle in degree

// compass calibration: cc|compass_c
compass_c={
	"heading":165.1,"h": 165,
	"x":  0.001,"y": -0.000,"z": 10.000,
	"x_raw": -233,"y_raw":   29,"z_raw": -372,
	"x_min": -261,"y_min": -330,"z_min": -535,
	"x_max":  319,"y_max":  247,"z_max":  452,
	"xv_min": -467,"yv_min": -535,
	"xv_max":  525,"yv_max":  452,
	"zero":999,"z_ang":   0,
	"c":"xy","e":"00"}
float heading, h // heading (optional)
float x, y, z    // gravity data m/s²
int16_t x_raw, y_raw, z_raw // magnetometer RAW data (optional)
int16_t x_min, y_min, z_min // magnetometer MIN data
int16_t x_max, y_max, z_max // magnetometer MAX data
int16_t xv_min, yv_min      // magnetometer MIN data, vertical
int16_t xv_max, yv_max      // magnetometer MAX data, vertical
int16_t xv_max, yv_max      // magnetometer MAX data, vertical
int16_t z_ang               // z angle (optional)
int16_t zero                // zero (optional)
char c[] // calibration state enum: "" "xy" "xv" "yv" "z" (optional)
char e[] // calibration event flags in hex (optional)

// compass calibration short: cs|compass_s
cs={"h": 165,"z_ang":  -0,"e":"00"}
compass_s={"heading": 165,"z_ang":  -0,"e":"00"}
float heading, h // heading (optional)
int16_t z_ang    // z angle (optional)
int16_t zero     // zero (optional)
char c[] // calibration state enum: "xy" "xv" "yv" "z" (optional)
char e[] // calibration event flags in hex (optional)

// compass inclination and declination: ci|compass_i
compass_i={"dec":  578,"inc": 5972}
int16_t dec // declination
int16_t inc // inclination

// battery configuration
bat={"low":3200,"high":4050,"pack":4500}
config_bat={"low":3200,"high":4050,"pack":4500}
uint16_t low  // mV for state of charge 0%
uint16_t high // mV for state of charge 100%
uint16_t pack // mV used to detect the number of batteries in a pack, e.g.
// if v >= 1 * pack the pack contains 2 batteries in serries
// if v >= 2 * pack the pack contains 3 batteries in serries

Other sensors

// IIS2DLPC accelerometer
iis2dlpc={"x":-0.00,"y":-0.00,"z":10.0}
float x, y, z // accelerometer data m/s²

// NOA1305 ambient light sensor
noa1305={"als":10}
uint32_t als // ambient light

// SHTC3 pressure and temperature
shtc3={"temp": 23.897,"humidity": 33.200}
float temp     // °C
float humidity // %

// ADP536X power controller
adp536x={"cs1":"0x00","cs2":"0x00","pgs":"0x00","voltage":3637,"level":4}
uint8_t  cs1     // status 1
uint8_t  cs2     // status 2
uint8_t  pgs     // charge status
uint8_t  level   // state of charge %
uint16_t voltage // voltage mV

// RTC date time
rtc={"y":2024,"m":1,"d":6,"hh":18,"mm":38,"ss"48}
uint16_t y  // year
uint8_t  m  // month
uint8_t  d  // day
uint8_t  hh // hour
uint8_t  mm // minutes
uint8_t  ss // seconds

RAW sensors

// MPU6050 accelerometer + gyroscope
mpu6050={"ax":0,"ay":0,"az":0,"gx":0,"gy":0,"gz":0}
float ax, ay, az // accelerometer data m/s²
float gx, gy, gz // angle in degree

// HMC5883 compass RAW, calibration performed in the APP
hmc5883={"x":0,"y":0,"z":0}
uint16_t x, y, z // magnetometer RAW data

// HMC5883 compass normalised
hmc5883n={"x":0,"y":0,"z":0}
float x, y, z // magnetometer normalised data

LED control and other commands sent to the sensors

o[0-5][01]  LED off or on
o[0-5][RT]  LED read or toggle
oR          LED read all
o[WT][0-3f] LED write or toggle all

compass
C  calibrate
D  reset calibration default
L  load calibration
2  2D calibration mode
3  3D calibration mode
c  toggle compensate
E  toggle print errors
G  toggle print compass
H  toggle print heading
M  toggle magnetic heading

?  help
R  CPU reset
<  dump registers for all tasks
<# dump registers for task #
#  comment: ignore this line

Offline testing

☂︎ Offline data can be served using netcat or g_relay.
☂︎ g_relay forwards data between clients, e.g. netcat and IoT sensors.
☂︎ Run g_relay in a terminal, then connect netcat nc localhost 81.
☂︎ Run IoT sensors.
☂︎ Tap the connection settings button located in the top-left corner.
☂︎ Enter IP address and port of the server providing sensor data.
☂︎ Use the green Connect button to conntct to a TCP server.
☂︎ Paste sample data in the netcat terminal.
☂︎ For realistic animation, simulate a slow connection e.g. 115200 bps or slower.
